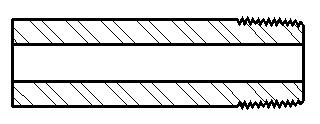

Pipe Nipples
PENN CATALOG F2002

FIG NO. 45303

Schedule 40 Seamless & Welded Nipples from 1/8 - 2 NPS
Schedule 80 Seamless from 1/8 - 2 NPS
Schedule 160 & XXH from 1/2 - 2 NPS

Nominal
Pipe Size
(NPS)		 Close Short Standard Lengths
1/8 3/4 1-1/2 2 2-1/2 3 3-1/2 4 4-1/2 5 5-1/2 6
1/4 7/8 1-1/2 2 2-1/2 3 3-1/2 4 4-1/2 5 5-1/2 6
3/8 1 1-1/2 2 2-1/2 3 3-1/2 4 4-1/2 5 5-1/2 6
1/2 1-1/8 1-1/2 2 2-1/2 3 3-1/2 4 4-1/2 5 5-1/2 6
3/4 1-3/8 1-1/2 2 2-1/2 3 3-1/2 4 4-1/2 5 5-1/2 6
1 1-1/2 2   2-1/2 3 3-1/2 4 4-1/2 5 5-1/2 6
1-1/4 1-5/8 2   2-1/2 3 3-1/2 4 4-1/2 5 5-1/2 6
1-1/2 1-3/4 2   2-1/2 3 3-1/2 4 4-1/2 5 5-1/2 6
2 2 2-1/2     3 3-1/2 4 4-1/2 5 5-1/2 6

All pipe nipples meet the dimensional specifications of ASTM A733-1999.
NPT, Beveled, or Square Cut (or) combinations available.
Other lengths, sizes,schedules, and special types available upon request.
